RIPRESS premium & smart

RIPRESS PREMIUM

High-precision level and pressure measurement

RIPRESS premium is the ideal tool for determining the level and volume of large barrages with maximum accuracy and long-term stability thanks to the use of a quartz crystal sensor. This instrument can provide an excellent measurement of hydrostatic or pneumatic pressure: in the first case, the sensor is in direct contact with water, while in the second it offers the measurement of the backpressure produced by an air compressor and is not in direct contact with water.

With this tool, point curves are freely programmable, for example, to calculate the volume of a weir. The system has an integrated data logger and it is always possible to set it up for remote interrogation. An SMS alarm signal can also be activated via an external GSM / GPRS modem.

Advantages
  • Excellent accuracy typically less than 0.01% FS, excellent long-term stability and 100% compensation ends, all thanks to the integrated quartz crystal sensor
  • Very precise calculation of the accumulation volume
  • Cost savings by optimising the hydrological balance
  • Freely programmable conversion table (e.g. volume of lakes)
  • Trend functions and limit value monitoring
  • Different communication protocols are available, compatible with the different management and remote control systems
Applications
  • Hydrostatic level measurement
  • Pneumatic level measurement
  • Ideal for determining the level and volume of large dams

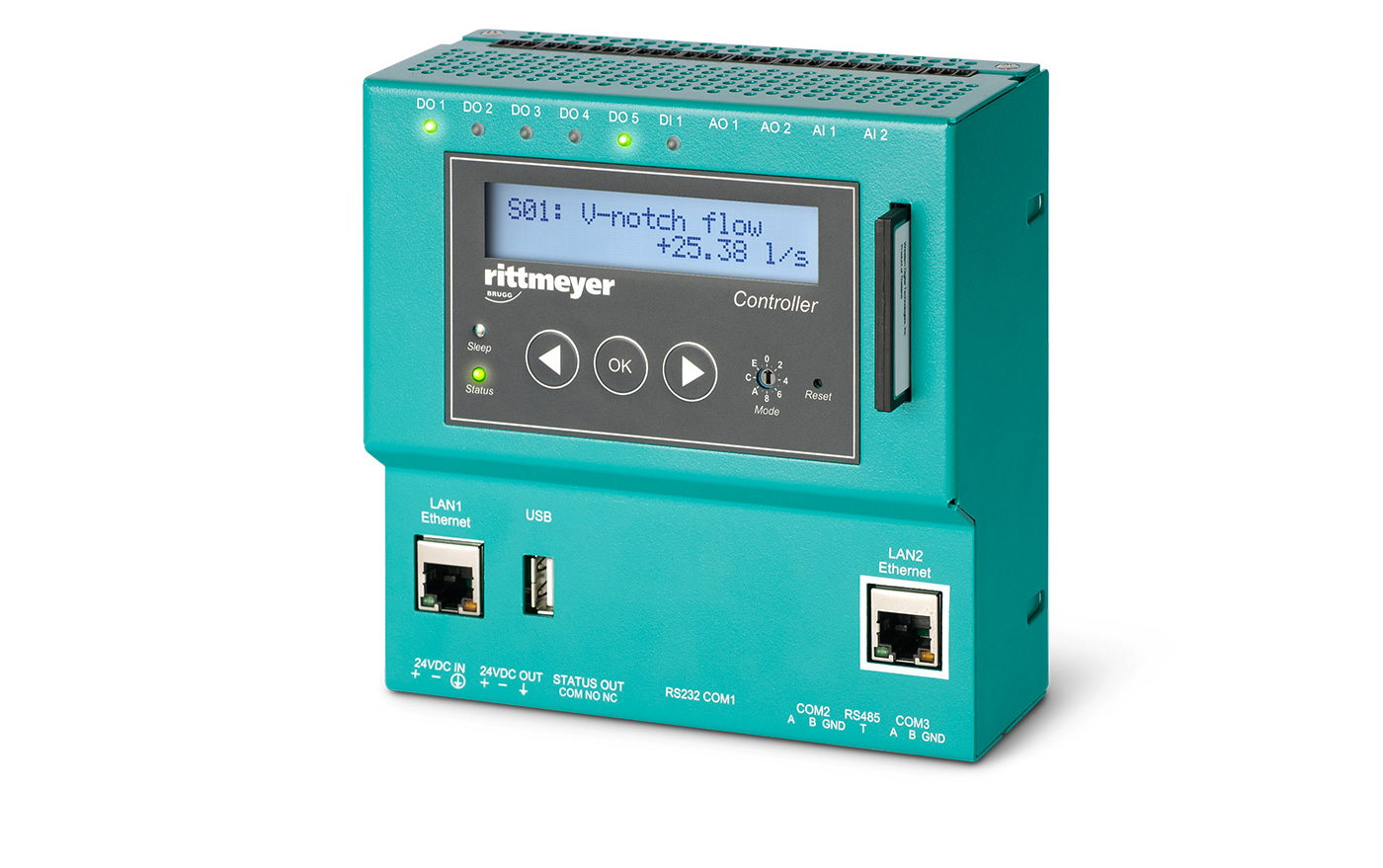

RIPRESS SMART

Advanced applications for water control and management

The RIPRESS smart is capable of adapting to different applications making it an excellent tool for water applications. The system can perform functions of: monitoring a level, calculating the volume, measuring the flow rate and monitoring grids. The system has predefined formulas for cylinders, triangular weir, spheres, rectangular weir and Venturi channels. It is also equipped with a volumetric counter with permanent data storage that favours its trending and limit-value monitoring functions and an integrated data logger with the possibility of setting up remote interrogation.

Advantages
  • Suitable for any type of level and pressure transmitter
  • Suitable with ultrasonic, piezoresistive or radar level transducers
  • Different predefined formulas for calculating the flow rate on rectangular, triangular weirs, venturi tubes, etc.
  • Volumetric counter with permanent data storage
  • Different communication protocols are available, compatible with the different management and remote control systems
Applications
  • Level measurement in canals, basins and reservoirs
  • Volume calculation
  • Indirect flow measurements: Stramazz, Venturi, Diaphragm, etc.
  • Grid monitoring
